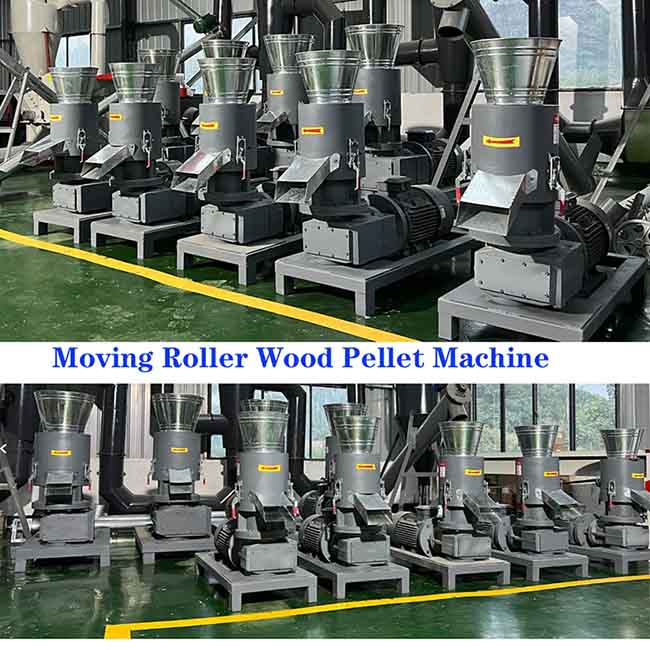

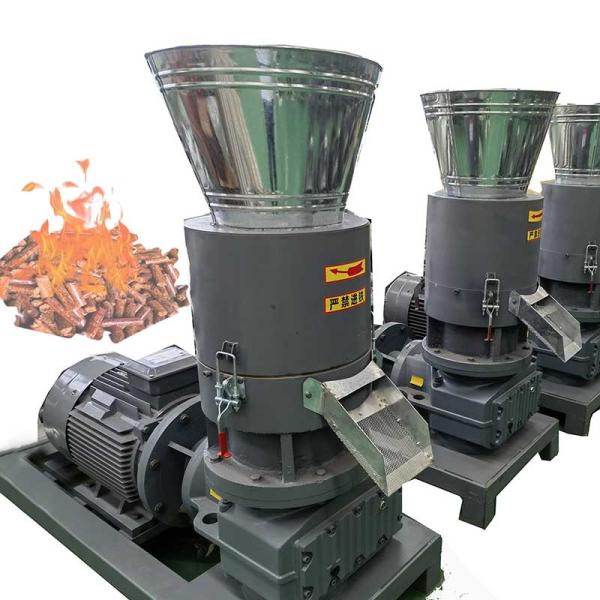

300kg/H Capacity Biomass Sawdust Wood Pellet Mill With CE Certificate
product description
The biomass wood pellet mill machine adopts extrusion granulation, and the raw material moisture content can be granulate between 10% and 20%, with low energy consumption and high output. It can produce biomass fuel, and can provide small-capacity equipment for small factories, home users, and office heating boilers to reduce equipment use costs.
Detailed explanation of the production process of wood pellet mill machine equipment:
Raw material collection: There are many raw materials for pellet machine, such as crop straw, wood chips, fruit shells, branches and bark, sawdust, etc.
Raw material crushing: When the pellet machine is granulating, the requirement for the raw material is 3-5MM, so all the raw materials we collect need to be crushed except sawdust.
Drying: The wood pellet machine is very strict on the moisture content of raw materials, and the moisture content should not exceed 18%. If the water content is too large or overwatered, the resulting particles will break but will not form.
Pelletizing: Wood pellet machine is the main equipment of the whole production line. According to output and usage, there are two types of pellet machines: flat die and ring die. The equipment is stable in operation, strong in pressure, high in particle density, high in molding rate, and resistant to combustion.
Pellet cooling: The temperature of the freshly made wood pellets is as high as 80 to 90 degrees, and can be bagged and stored after being cooled to room temperature by a cooling machine.
Granule packaging: convey the cooled and complete granules to the packaging machine with a conveyor, and the packaging machine will measure and pack them into bags, and finally send them to the finished product warehouse. Then it can be sold directly.
Customized production of a complete set of wood pellet fuel production line, affordable, durable and high-yield equipment, environmentally friendly and low consumption, high molding rate, stable performance, pellet fuel burning resistance, high calorific value.
Technical Parameters
Wood Pellet Mill
| Model | Capacity | Power | Weight |
| EWPM- 200 | 80-120 kg/h | 7.5 kw | 300 kg |
| EWPM- 300 | 200-300 kg/h | 22 kw | 550 kg |
| EWPM- 400 | 400-500 kg/h | 30 kw | 850 kg |
| EWPM- 450 | 600-700 kg/h | 45 kw | 1150 kg |
| EWPM- 550 | 700-800 kg/h | 55 kw | 1800 kg |
Operation
1. Operators should familiarize themselves with this instruction manual, be familiar with the performance, structure and operation methods of the machine, and carry out installation, commissioning, use and maintenance according to the provisions of this instruction manual.
2. Hard (metal) sundries should be cleared from the processed materials, so as not to damage the machine and cause accidents.
3. During the processing, it is strictly forbidden for operators to put their hands into the transmission part and the granulation chamber to prevent accidents.

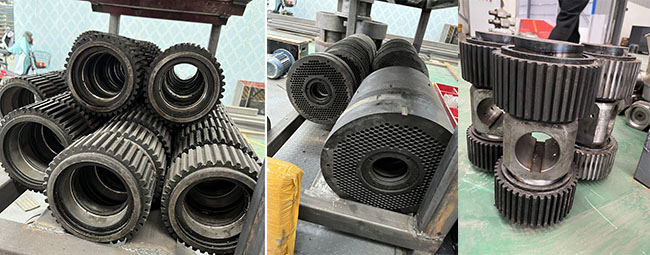

4. Always check the wear of the mold pressure roller, and adjust, replace or repair it if necessary.
5. If you need to check the pellet machine, you must cut off the power supply to ensure safety.
