350kg/H Floating Fish Feed Production Line Pet Floating Fish Feed Pellet Machine

Name: 350kgH Floating Fish Feed Production Line Pet Floating Fish Feed Pellet Machine
Brand: Zhongdebao
Price: 1 USD

China 350kg/H Floating Fish Feed Production Line Pet Floating Fish Feed Pellet Machine wholesale

Brand Name : Zhongdebao

Model Number : DGP-85 line

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1 set

Price : price negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 999 sets per month

Delivery Time : 5-8 working days

Packaging Details : with wooden case package or directly loaded in the container

Warranty : 1 Year,

Voltage : 220V/380V, 380 V (accept customized according to your local voltage)

Condition : new

Weight : 3200kg

Dimension(l*w*h) : according to actual wood pellet machine

Type : pet fish dog cat feed pellet line machine

After-sales service provided : Engineers available to service machinery overseas

Capacity : 350kg/h

Product name : Floating Fish Feed Pellet Making Machine

Application : floating fish pet cat dog food production line

Power(w) : 22kw 30kw 37kw 55kw

Material : stainless steel

Motor : Siemens, Chinese Brand or as clients requirement

Raw material : Rice flour, corn flour, wheat flour soya flakes meal, rice bran , wheat bran, fish powder, bone powder

Name : floating fish pet dog cat food extruder line

Color : blue green and white , customized , as clients requirements

Pellet size : 1-12mm

Contact Now

Fish feed making machine is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is high and new technical program as to catch the developing pet food market. CE certificate best price floating aquarium fish feed pellet food making machine mainly use maize, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food.

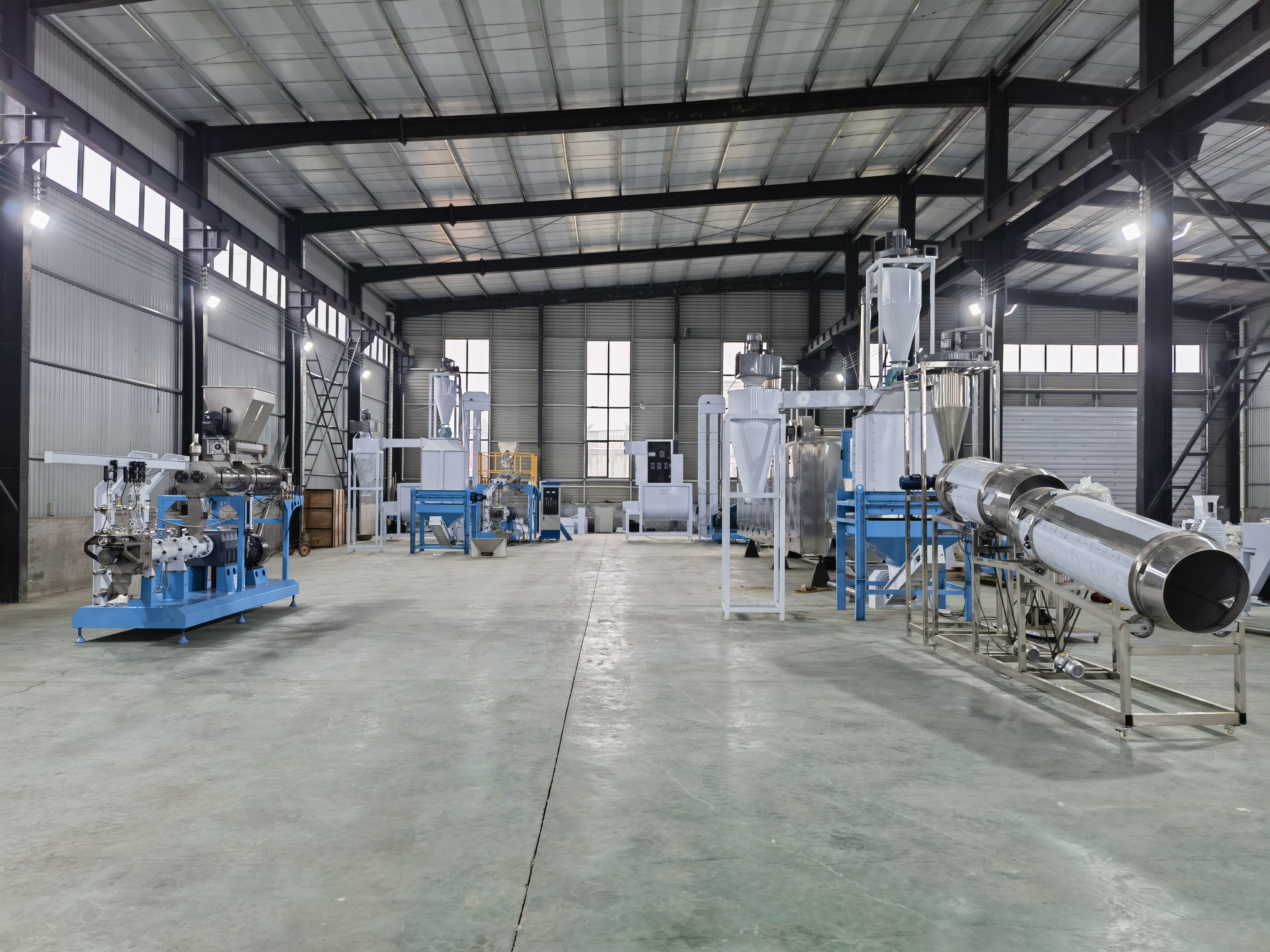

Equipment list in the fish feed production line:
mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine

Raw material:
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.


wet type screw extruder for floating fish feed pellet machine Pet food pellet making plant:
  	 			Model
 			Capacity t/h
 			Main Power
 			feeding power
 			screw diameter
 			cutting power
 			conditioner power
 			Weight

 			DSP85
 			0.35-0.4
 			22kw
 			1.1kw
 			80
 			0.75kw
 			1.5kw
 			1000kg

 			DSP90
 			0.5-0.6
 			30kw
 			1.1kw
 			90
 			1.1kw
 			2.2kw
 			2000kg

 			DSP100
 			0.6-0.7
 			37kw
 			1.1kw
 			100
 			1.1kw
 			3kw
 			2100kg

 			DSP120
 			0.7-0.8
 			55kw
 			1.1kw
 			120
 			1.5kw
 			3kw
 			2200kg

 			DSP135
 			1.0-1.5
 			75kw
 			1.5kw
 			135
 			2.2kw
 			5.5kw
 			3200kg

 			DSP145
 			2.0-3.0
 			90kw
 			2.2kw
 			145
 			2.2kw
 			7.5kw
 			4000kg

 			DSP160
 			3.0-4.0
 			110kw
 			2.2kw
 			160
 			3kw
 			11kw
 			4500kg

 			DSP175
 			4.0-5.0
 			132kw
 			3.0kw
 			175
 			3kw
 			15kw
 			5000kg

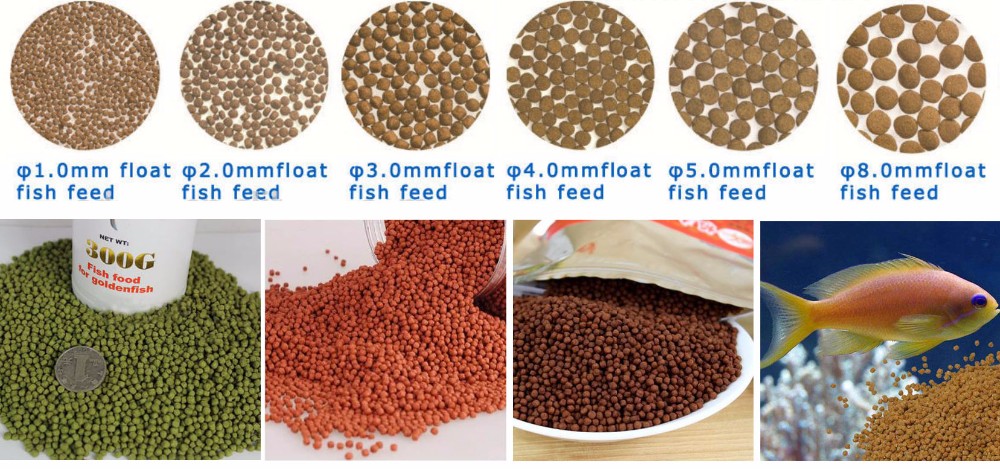

Sample of fish feed pellet:















  	 			Name

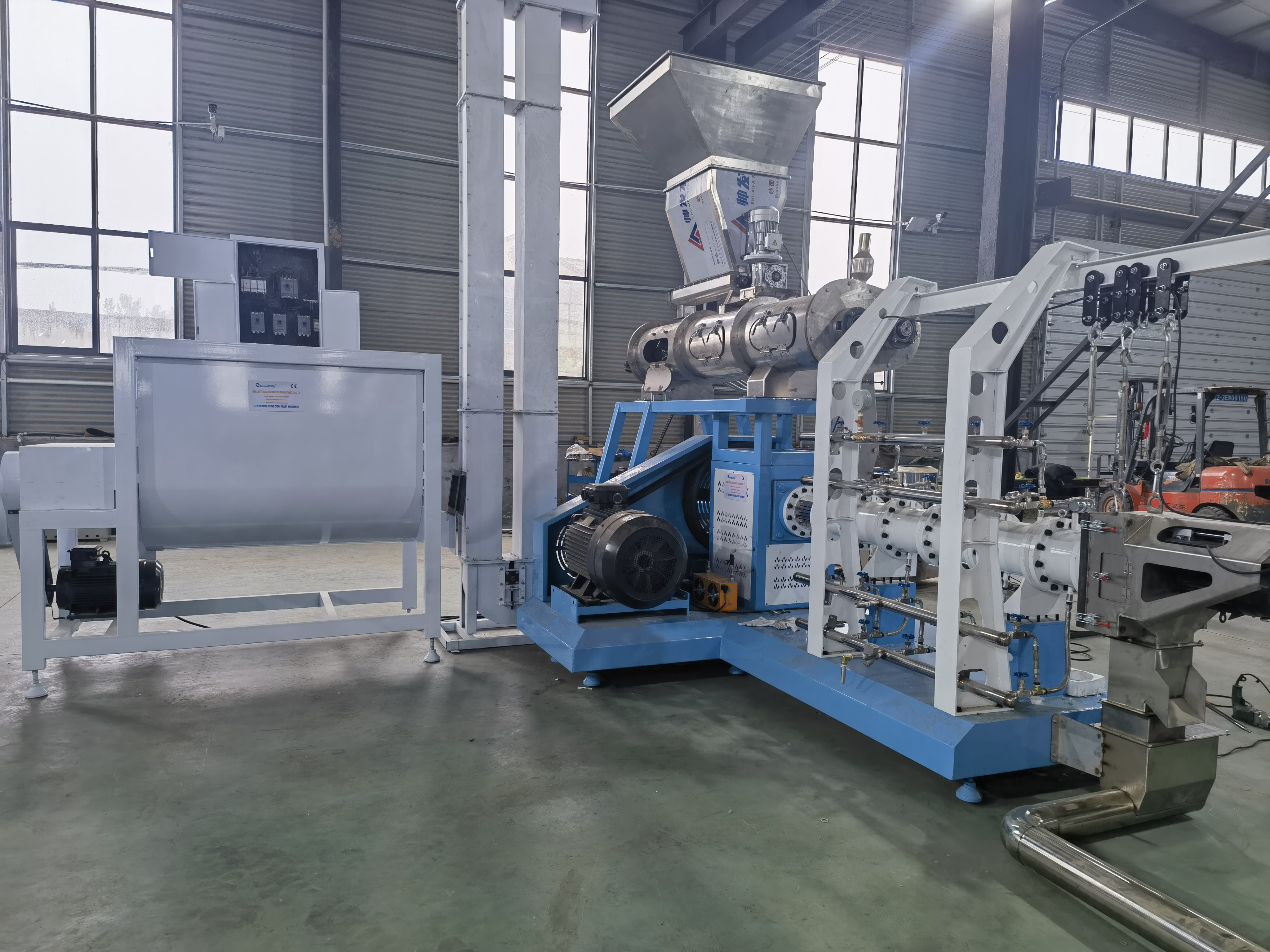

 			Twin screw extruder(wet type/dry type)

 			Usage
 			To extrude the raw materials and make them to the required shape and size of the fish feed pellets by mould

 			model
 			DSE65, 70, 75, 90, 95, 120, 135

 			Motor
 			22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc.

 			Capacity
 			100kg/h to 10 ton/h

 			Material
 			Screw materials 38CrMoAl
 			stainless steel, carbon steel


  	 			Name

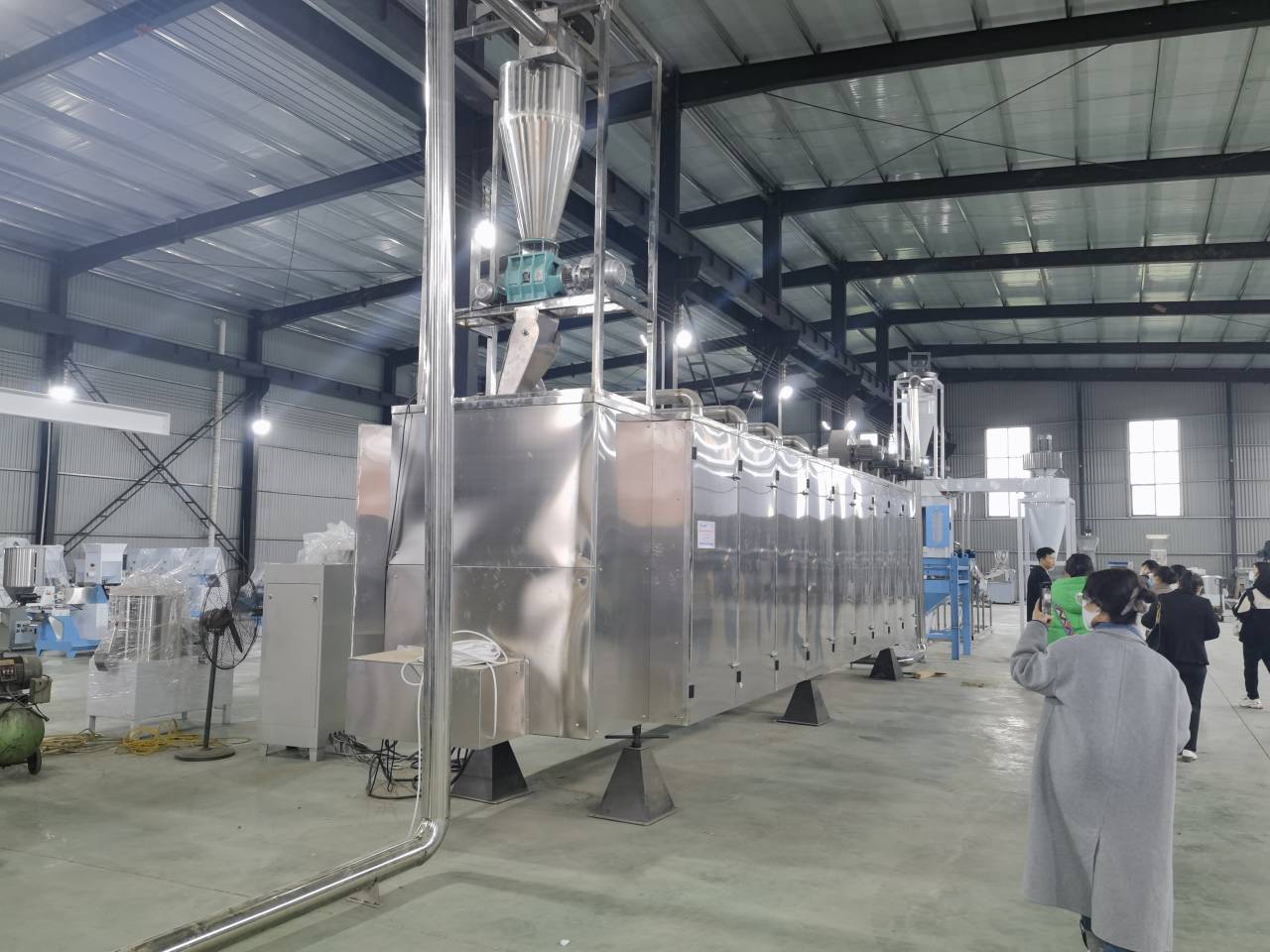

 			Dryer (oven)

 			Usage
 			the expanded food go through the “s” passage, to be dried to increase the self life.

 			Type
 			electrical, steam, gas fired, diesel fired heating type

 			Motor
 			KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.

 			Capacity
 			100kg/h to 10 ton/h

 			Material
 			stainless steel, carbon steel


  	 			Name

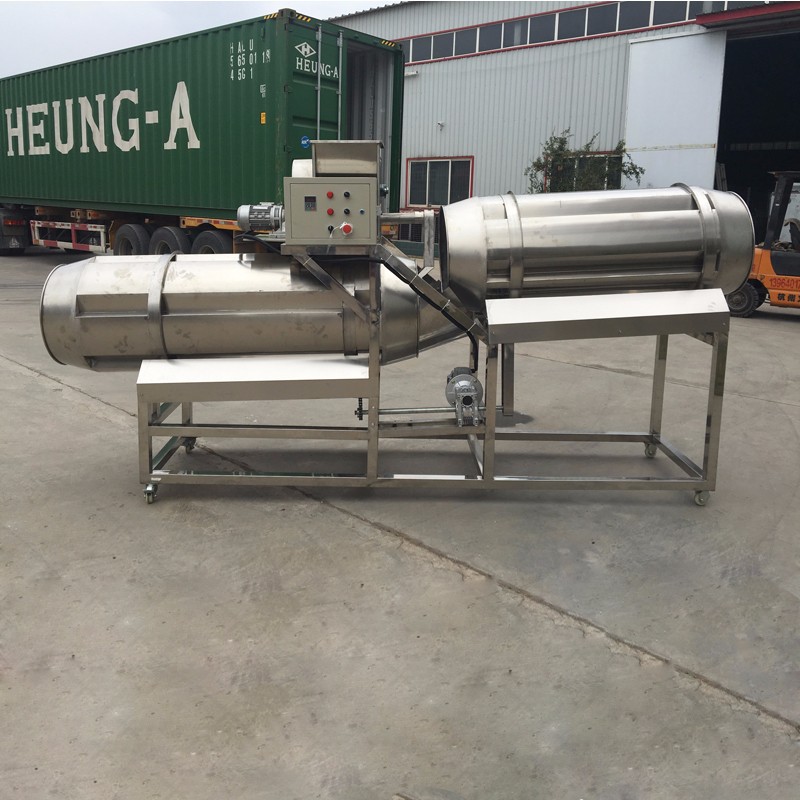

 			Flavoring machine

 			Usage
 			To mix the oil and flavors on the surface of the fish feed

 			Type
 			single and double flavoring drum

 			Motor
 			0.75kw

 			Capacity
 			100kg/h to 10 ton/h

 			Material
 			stainless steel


  	 			Name
 			Packaging machine

 			Usage
 			To pack the fish feed with required weight

 			Flowing Process
 			Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing

 			Weight range
 			1-5kg/bag, 5-25kg/bag, 25-50kg/bag

 			Material
 			stainless steel, carbon steel

 			Type
 			Automatic



Equipment list in the fish feed production line:
mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine
