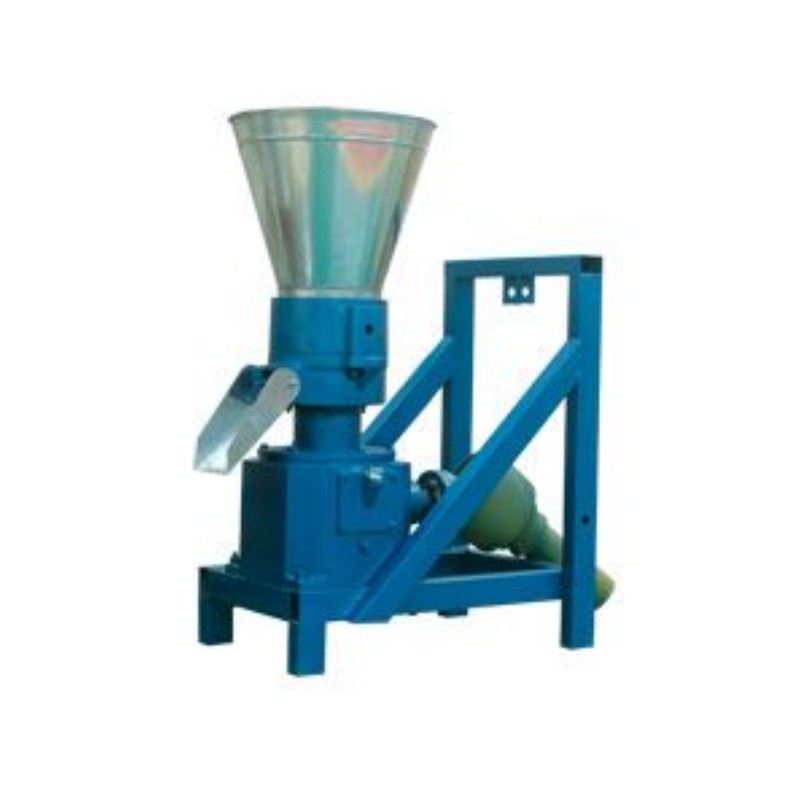

90-120kg/H Pto Pellet Mill Tractor Type Feed Pellet Machine Unpowered Pellet Machine
Product Description
Feed Pellet Machine
The ZLSP R-Type series pellet press machine, with rotating roller, is designed to process wide range of materials such as wood chips, pine, bamboo, peanut, shell, rice husk, etc. into biomass pellets without any additive.
The biomass material has been on the die through the feed hopper. The press roller has been driven by principle axis, then press roller has extend the material to the nib, the material has been shaped to the cylindrical pellet in the nib for certain time and would be cut the rotary slicer, then moved to the discharge hole.
| Model | Power | Capacity(kg/h) | Weight(kg) | Package Size(mm) |
| ZLSP-R200P | ≥15 | 80-120 KG/H | 232/265 | 1000*540*1000 |
| ZLSP-R300P | ≥36ph | 250-350 KG/H | 483/520 | 1200*640*1400 |
| ZLSP-R400P | ≥55ph | 350-450 ·KG/H | 570/600 | 1300*700*1450 |
Advantages
1,CE&ISO certificate;
2,Long service life with alloy steel principle shaft box and upper box;
3,Pellets are of uniform, hard and smooth;
4,Low noise, high endurance, low temperature, changing with alloy steel carbon-quenched multiple geared system.
5,Simple operation, low energy consumption and less manpower;
Company Profile
Zhongdebao was established in 1998, specializing in R&D, production and sales of feed pellet machine ,wood pellet machine, pet/fish feed pellet machine. In short, it is a company integrating R&D, manufacture, sales, installation and all kinds of service.
Zhongdebao always regards quality as a core foundation and also deploys advanced facilities of the domestic and international
brand as well as owns over 80 national ,provincial man municipal scientific achieveme-nts.
FAQ
Question 1 : I know little for feed machine and production line, what should I do ?
A: No need to worry. Kindly share your requirements with us, for instance, the type of feed you intend to manufacture, your target hourly output, the number of raw materials needed and any other necessary details. We'll suggest appropriate feed machinery and create a tailored flow diagram for your production process.
Question 2 : Does the pellet machine have any requirements for raw materials?
A: Grain materials do not need to be crushed, but forage and straw must be crushed before they can be processed. It is best to use powder materials because the particles made from powder materials are evenly nutritious.
Question 3: Can we customize our logo/website/company name on Feed pellet machine?
A: Of course, we offer OEM and ODM service.
Question4 : How long is your warranty time ?
A: One year(Calculated from the equipment arriving the customer’s side.). After this period, we will definitely provide you with great support whenever you need. In a word, you will be welcome to contact us with any problems.
